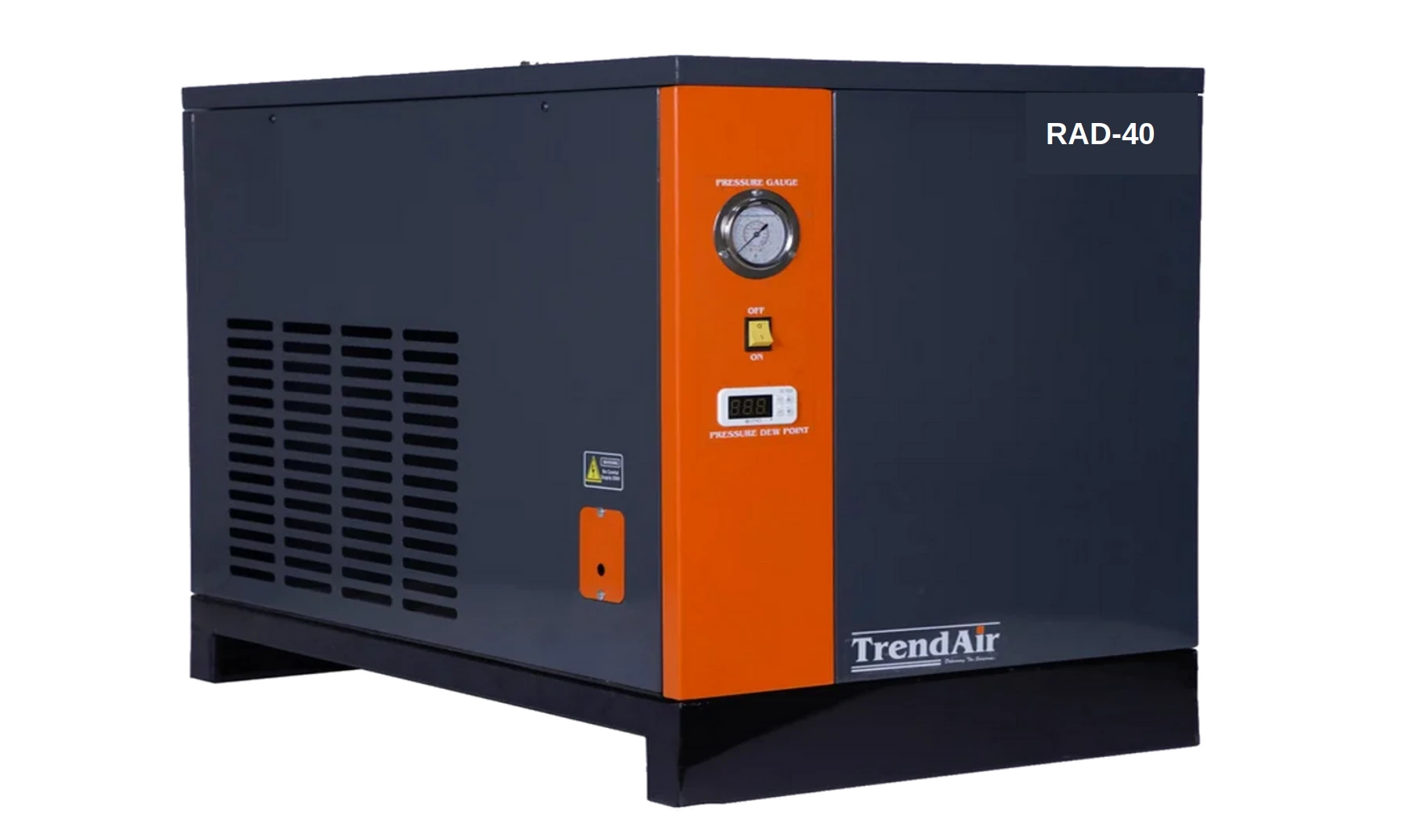

Refrigerated Air Dryer (RAD-40)
The RAD-40 refrigerated air dryer is a mid-capacity compressor accessory that dehumidifies compressed air to a pressure dew point of ~ +3 °C, ensuring dry …
Learn More
Refrigerated Air Dryer (RAD-40)
₹42000.00
- Constant dew point (~3 °C) under variable load, ensuring dry compressed air irrespective of demand.
- Automatic condensate removal via a timer-based or automatic drain valve (no manual draining required)
- Low pressure drop and efficient heat exchange, thanks to optimally spaced fins and copper-tube heat exchangers
- Rugged, corrosion-resistant enclosure (powder-coated), easy installation and maintenance design
- Machine tool / CNC / VMC workshops where dry air is essential to prevent corrosion / damage to pneumatic systems.
- Paint booths / powder coating lines, to avoid moisture-induced defects in finishes.
- Pharmaceutical / medical / laboratory equipment requiring dry, clean air supply.
- Food & packaging / bottling lines, where moisture in compressed air can cause damage or contamination.
| Air Flow Capacity | 40 CFM |
| Operating Pressure / Pressure Rating | min: ~ 8 bar; Max: ~ 15 kg/cm² |
| Power Supply / Voltage | Single-Phase 230V / 50 Hz |
| Dew Point Temperature | ~ 3 °C (± variation) |
| Maximum Ambient Temperature | 34 degree |
| Refrigerant | R-134a |

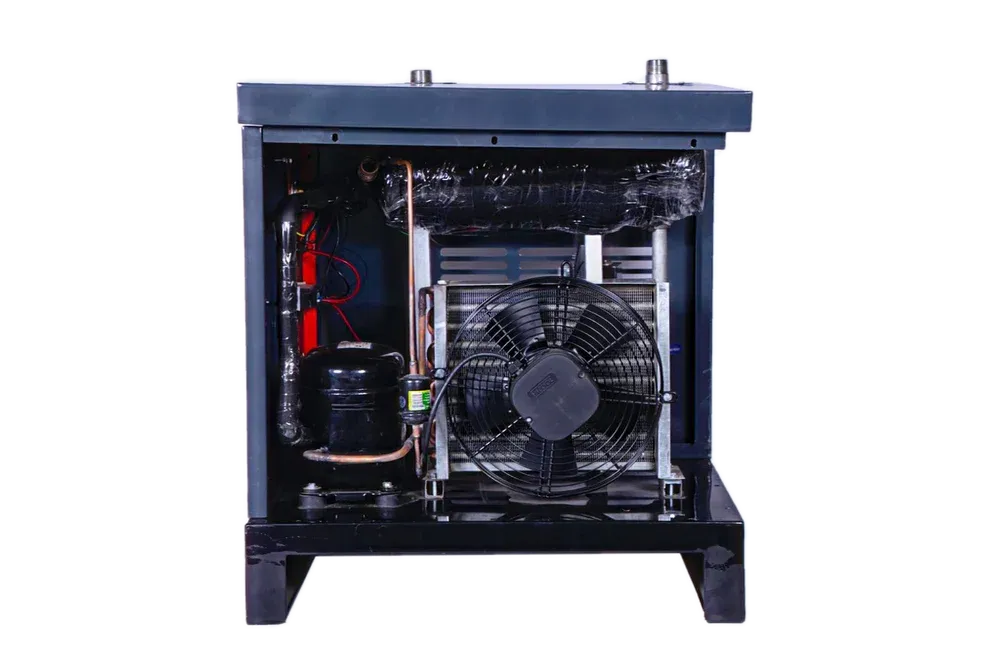

| Condenser / Fan / Compressor | Copper tube + aluminium fins + Emerson (or equivalent) |
- Quality testing / standards: Each unit is hydrostatically tested on the air side before delivery; the refrigeration loop is clean
- Delivery & production capacity: The company cites a production capacity of about 20 units per day for this class of dryers; typical
×
❮
