Refrigerated Air Dryer (RAD-20)
A compact refrigerated air dryer designed for use with compressed air systems, suitable for small-to-medium duty applications. It removes moisture from compressed air by cooling …
Learn More

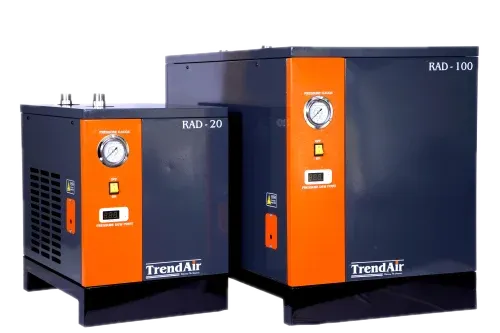

Refrigerated Air Dryer (RAD-20)
₹25000.00
- Automatic condensate removal via timer-based auto drain valve to remove moisture without manual intervention.
- Designed for tropical/humid conditions, with rugged casing (powder coated), good insulation, and materials that resist corrosion.
- Constant pressure dew point at ~3 °C even under varying load conditions, ensuring consistent performance.
- Low pressure drop & efficient heat exchange, thanks to finned copper-tube condenser & well spaced fins
- Compact build, easy installation & maintenance — suitable for small compressor units; includes essential gauges & indicators.
- For small machine shops (e.g. CNC, VMC) where compressed air needs to be clean, dry for tool life.
- Paint booths or powder coating processes to avoid moisture and oil causing defects in finish.
- In hospital / medical gas systems or laboratories to ensure air quality standards are met.
- Packaging / food & beverage lines where moisture in compressed air could contaminate products or packaging.
| Air Flow Rate | 20 CFM |
| Operating Pressure / Pressure Rating | Up to ~15 Bar (test pressure ~10 Bar) |
| Power Supply / Voltage | Single-Phase 230V / 50 Hz |
| Dew Point Temperature | ~ 3 °C (± variation) |
| Inlet / Outlet Connection | 1-inch Threaded Connection |
| Model Weight | ~ 45 kg |

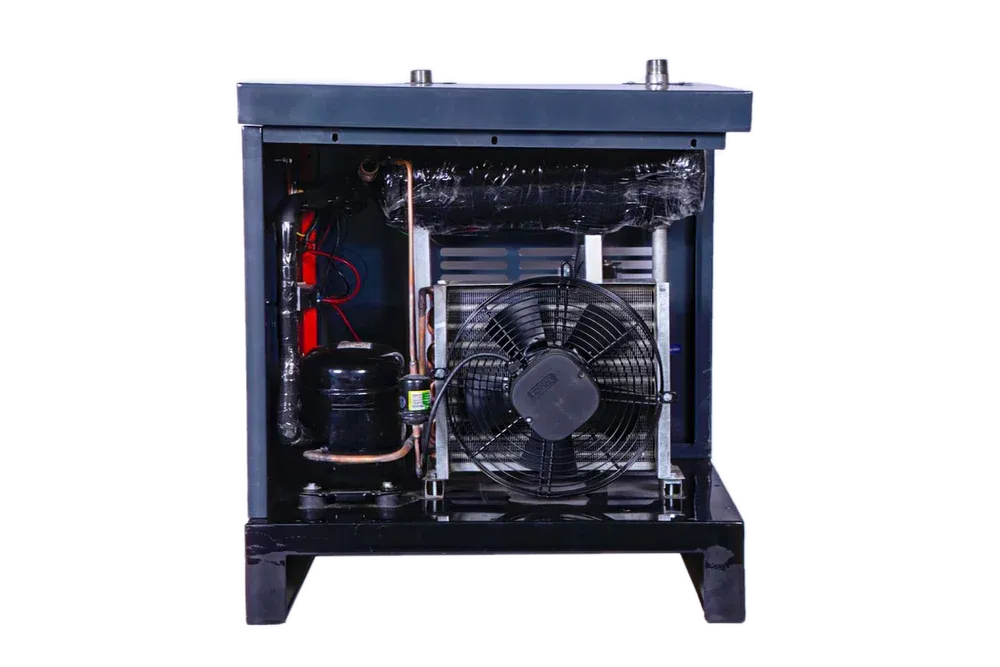

| Condenser Type / Material | Copper Tube & Aluminum Fin; Axial Fan cooled |
- Inlet/Outlet connection: It comes with a 1-inch threaded inlet/outlet connection.
- Refrigerant used: R-134a
- ISO standards: Designed to meet ISO standards for air quality (e.g. ISO8573.1 / ISO7183) for moisture & particulate
- Packaging and shipment:: weight ~45 kg, packed suitably; delivery time generally ~1 week.
- Make: India
×
❮
