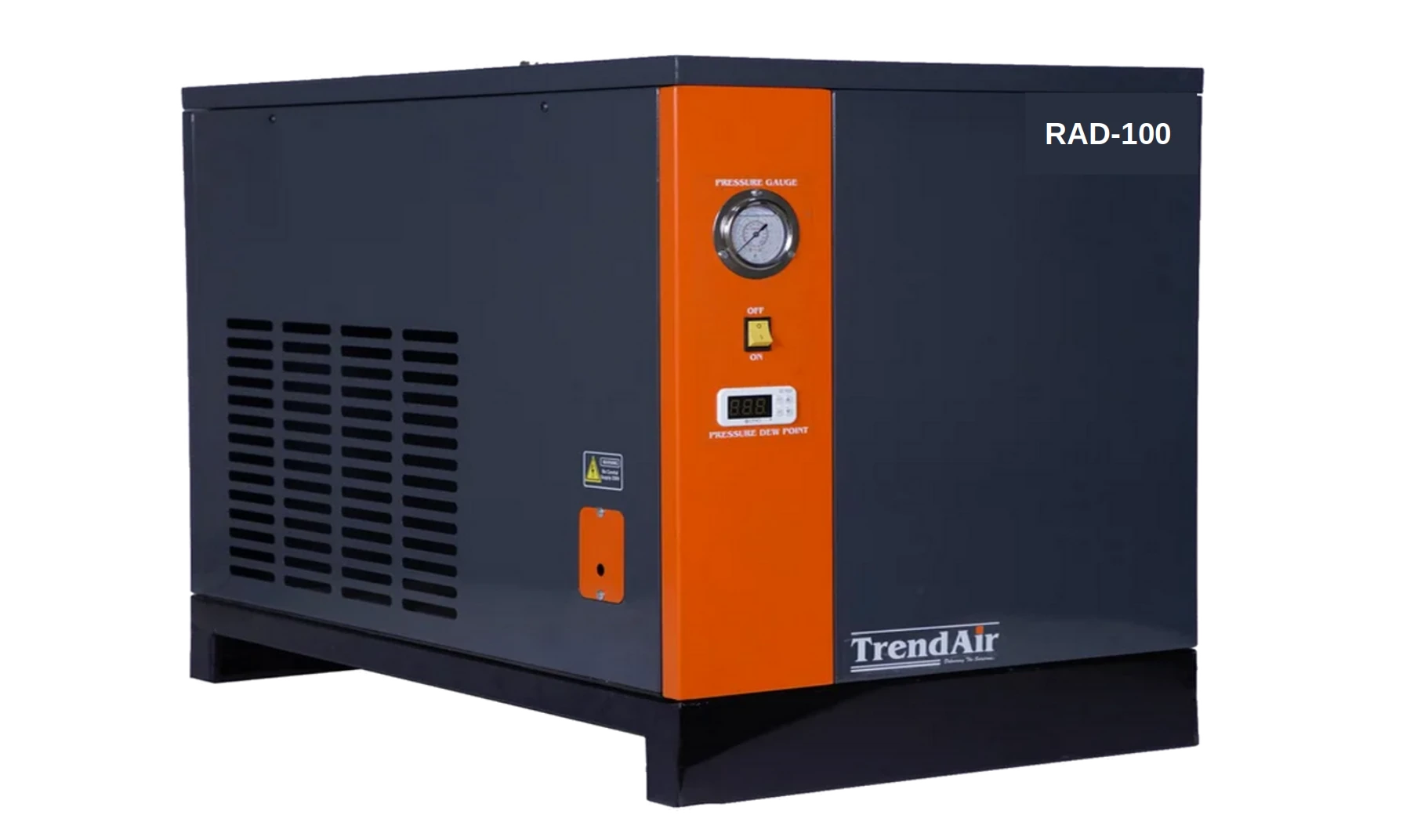

Refrigerated Air Dryer (RAD-100)
RAD-100 is a high-capacity refrigerated air dryer capable of handling ~100 CFM compressed air, engineered to lower moisture content and maintain a dew point near …
Learn More
Refrigerated Air Dryer (RAD-100)
₹80000.00
- Stable dew point (~3 °C) under varying load conditions to ensure consistent dryness of compressed air.
- Automatic condensate drainage via timer or electronic drain to remove moisture without manual intervention.

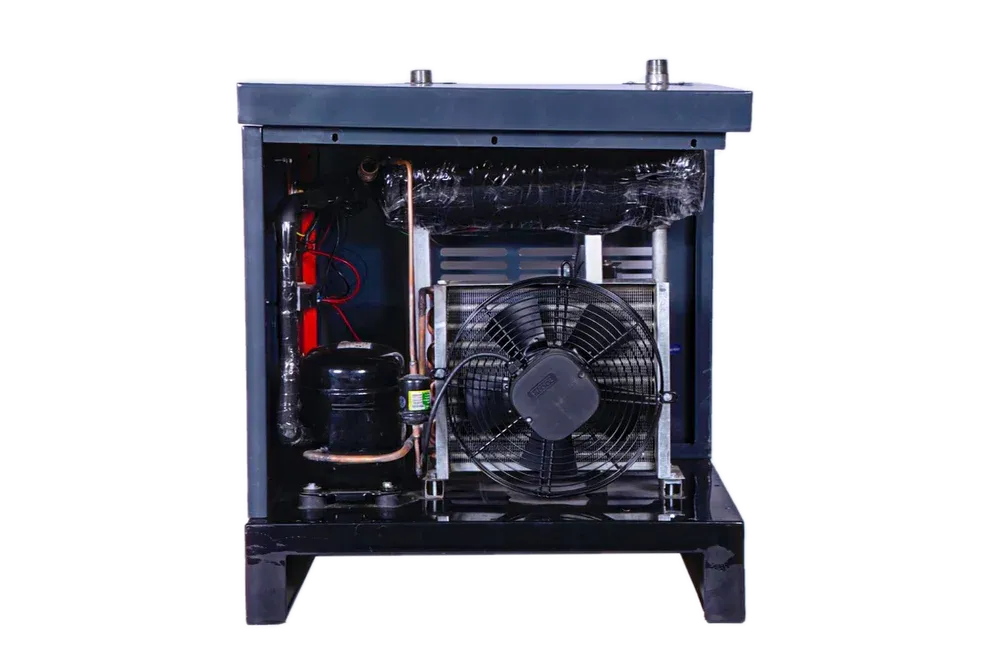

- Efficient heat exchange & low pressure drop using copper-tube / aluminium-fin condenser design and optimized fin spacing.
- Robust construction & corrosion resistance — powder coated housing, well-sealed cabinet, designed for industrial / humid environments.
- Machine shops / CNC / VMC / tooling operations — to supply dry air to pneumatic equipment, prevent corrosion, tool damage.
- Paint booths / powder coating / finishing lines — to avoid moisture interference, defects, blistering.
- Pharmaceutical / medical / laboratory systems — offering dry, clean compressed air for sensitive processes.
- Food & packaging / bottling / beverage plants — where moisture in compressed air could cause contamination, corrosion, or product spoilage.
| Air flow / Capacity | 100 CFM |
| Power consumption | 5 kW |
| Parameter Value / Notes Air flow / Capacity 100 CFM technotrendinnovations.in Power consumption 5 | ~15 bar |
| Dew point temperature | ~ 3 °C (± variation) |
| Refrigerant | R-134a |
| Maximum ambient temperature | ~ 45 °C |
- Production capacity & delivery time:: The “Compressed Air Dryer” listing says production capacity 20 units per day and typical delivery ti
- Quality & testing procedures:: They mention hydrostatic testing of the air side, purging and leak testing of the refrigeration loop
×
❮
