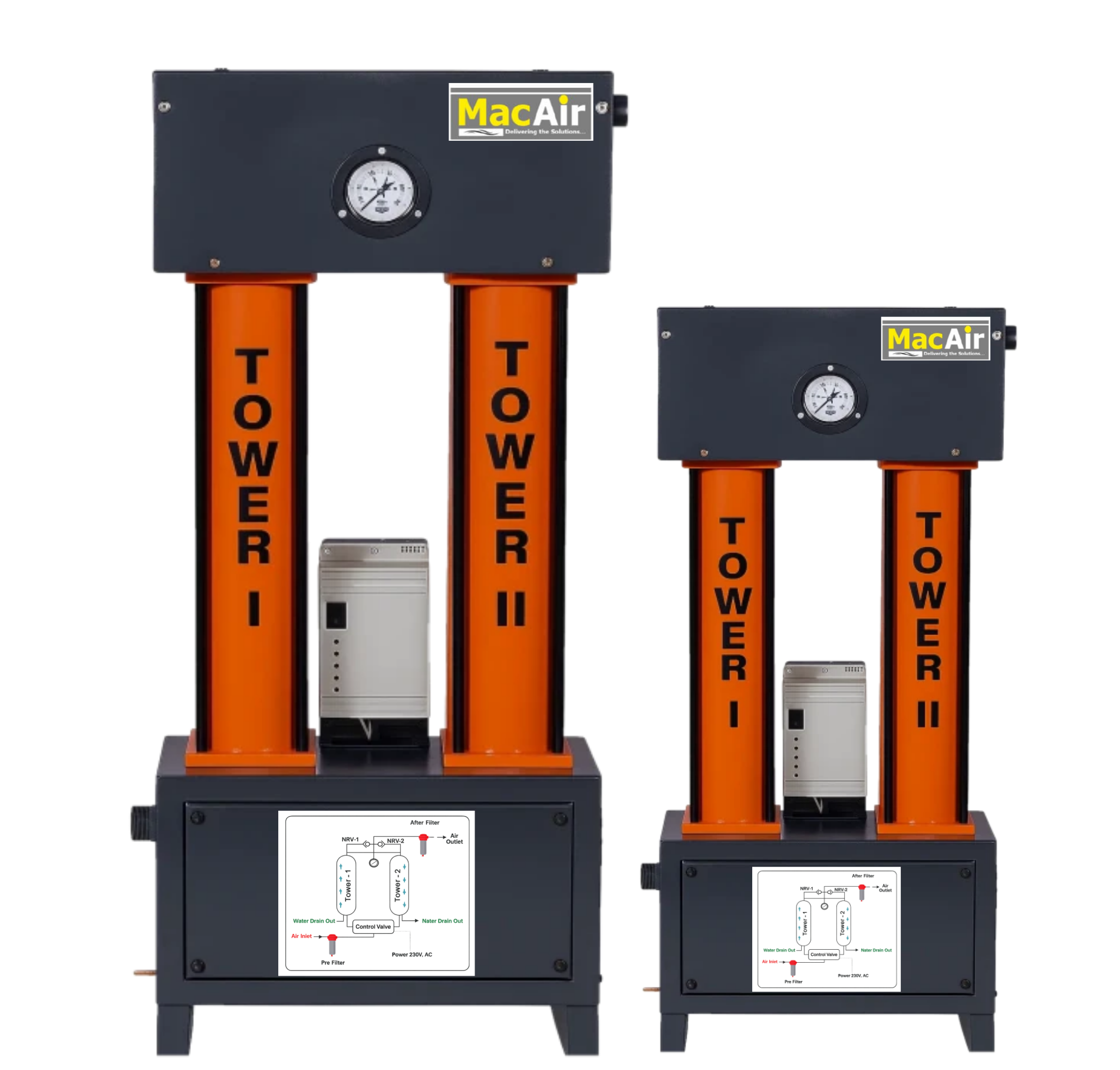

Desiccant Air Dryer (DAD-10)
A “heatless” regenerative desiccant dryer under the MacAir / DAD series, the DAD-10 model is built to provide moisture-free compressed air for small to medium …
Learn More
Desiccant Air Dryer (DAD-10)
₹23000.00
- Uses “heatless” method of regeneration, meaning a portion of dried compressed air is used to purge moisture from the desiccant tower without needing an external heater.

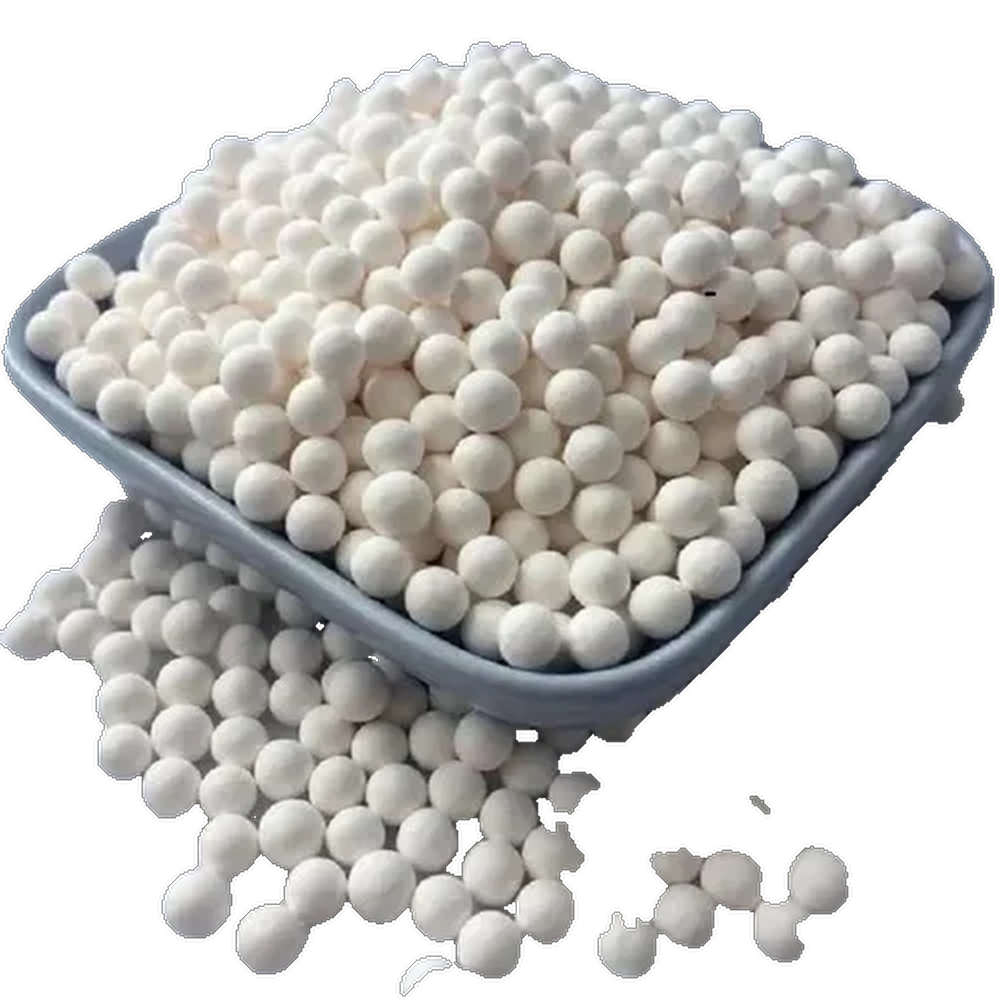

- The desiccant bed consists of activated alumina balls, providing low dew point (≈ -40°C) drying performance.

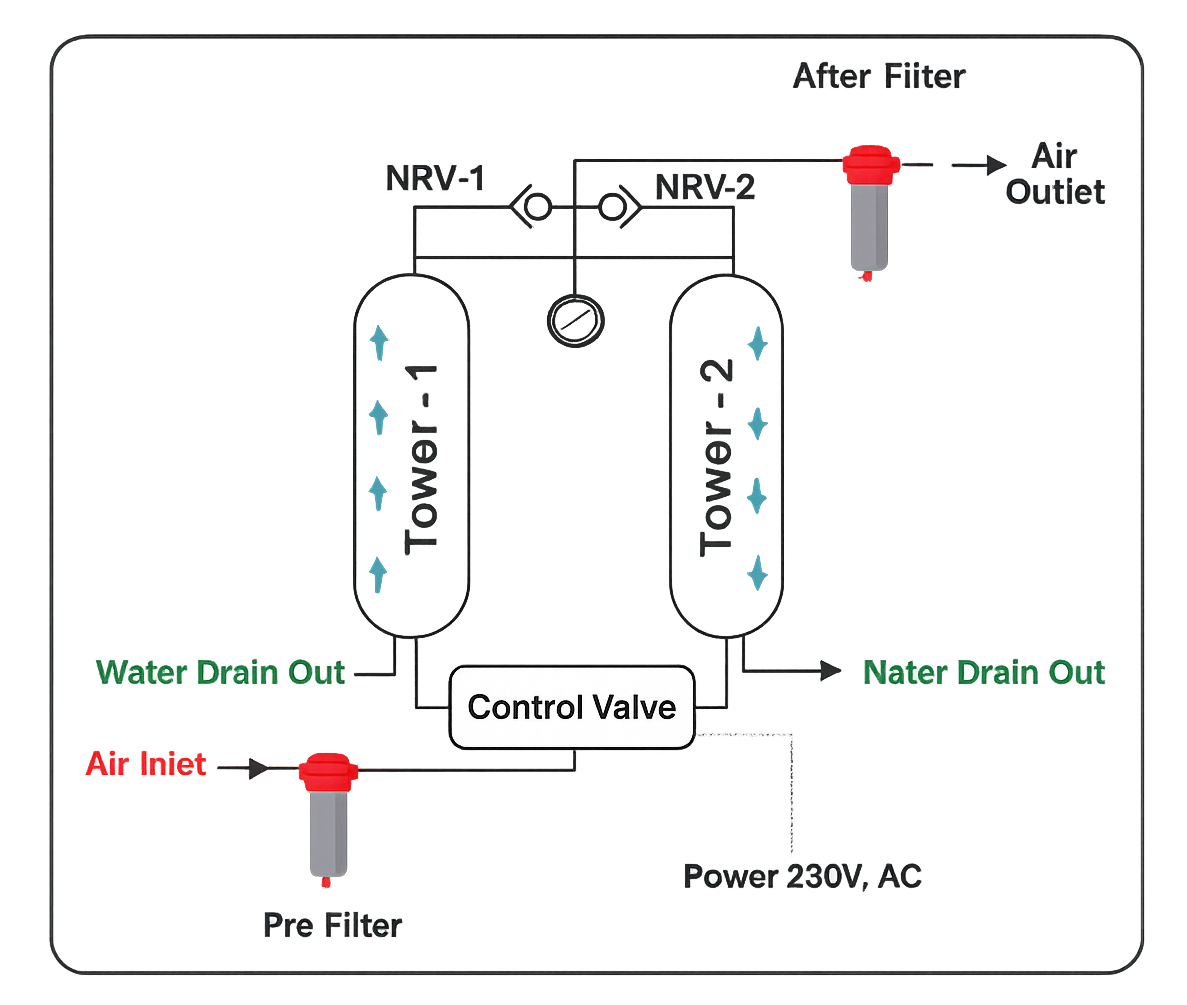

- The design includes a coalescing prefilter and after‐filters (to remove oil, particulates, desiccant fines), ensuring that the desiccant bed and downstream air remain clean.
- Incorporates pneumatic valves, NRV (non-return valves), purge control, and outlet pressure indicator. These features help regulate cycles and monitor operation.
- Tool rooms / small workshops using pneumatic tools where moisture in air could damage tools or affect finish.
- CNC / VMC (vertical machining centre) machine shops needing dry air for precision & preventing corrosion.
- Pharmaceutical / food & packaging industries where moisture‐free / low‐contaminant air is critical for hygienic processing.
- Paint booths or powder coating work at smaller scale, to avoid defects caused by water / damp air.
| Air Flow Capacity | 10 CFM |
| Working Pressure Range | 4 to 12 bar |
| Working / Inlet Temperature Range | 5°C to 45°C |
| Atmospheric (Pressure) Dew Point | -40°C |
| Supply Power / Voltage | 230 V / Single-phase 50 Hz |
- Meets ISO 8573-1 air quality standards (Table 3, Class 2 or Class 3 moisture/particulate separation): ISO Standard
- roduct includes digital / analog indicators (temperature, pressure), and uses durable materials (e.g: Automation
×
❮
