Explore Our Product Range
At Technotrend Innovations, we specialize in providing advanced solutions for industrial air treatment. Our comprehensive product range includes high-performance Refrigerated Air Dryers, compressed Air Dryers,Air Compressors, Compressed Air Filters, and Auto Drain Valves, all designed to enhance the efficiency and reliability of your compressed air systems. Whether you're looking to maintain optimal air quality or ensure the longevity of your equipment, our products are engineered to meet the highest standards of performance and durability.
Browse Products

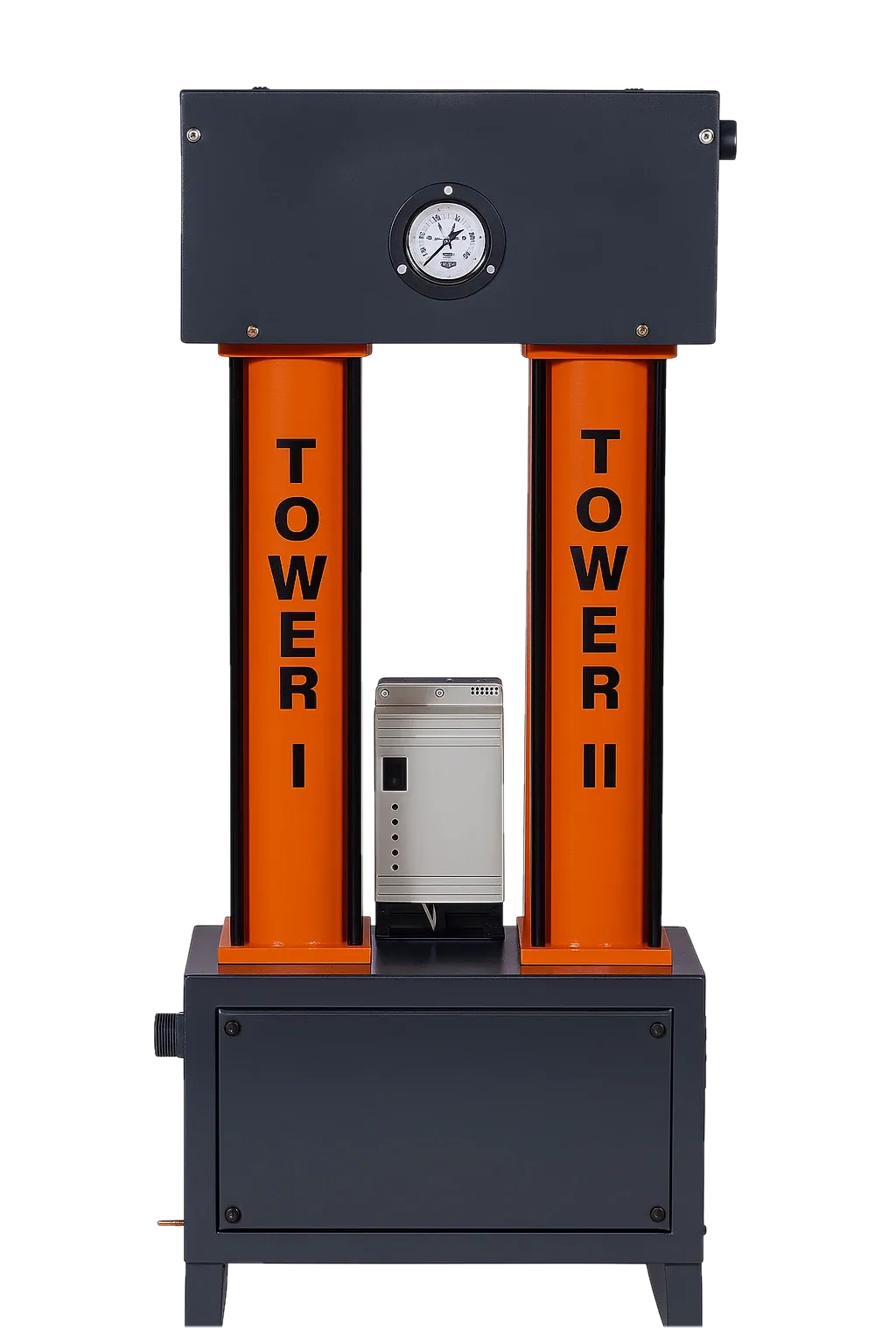

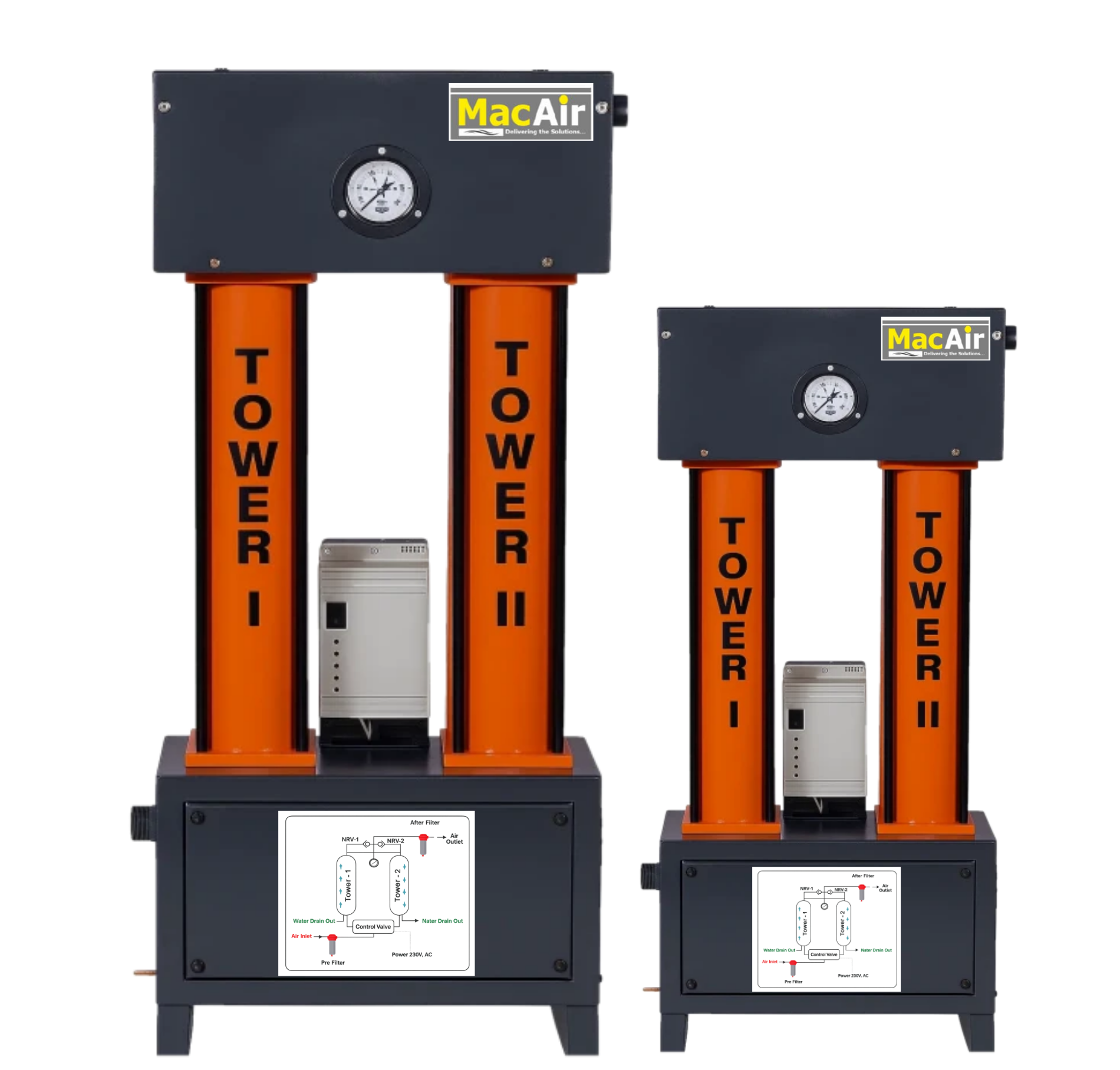

Our product range for Desiccant Air Dryer

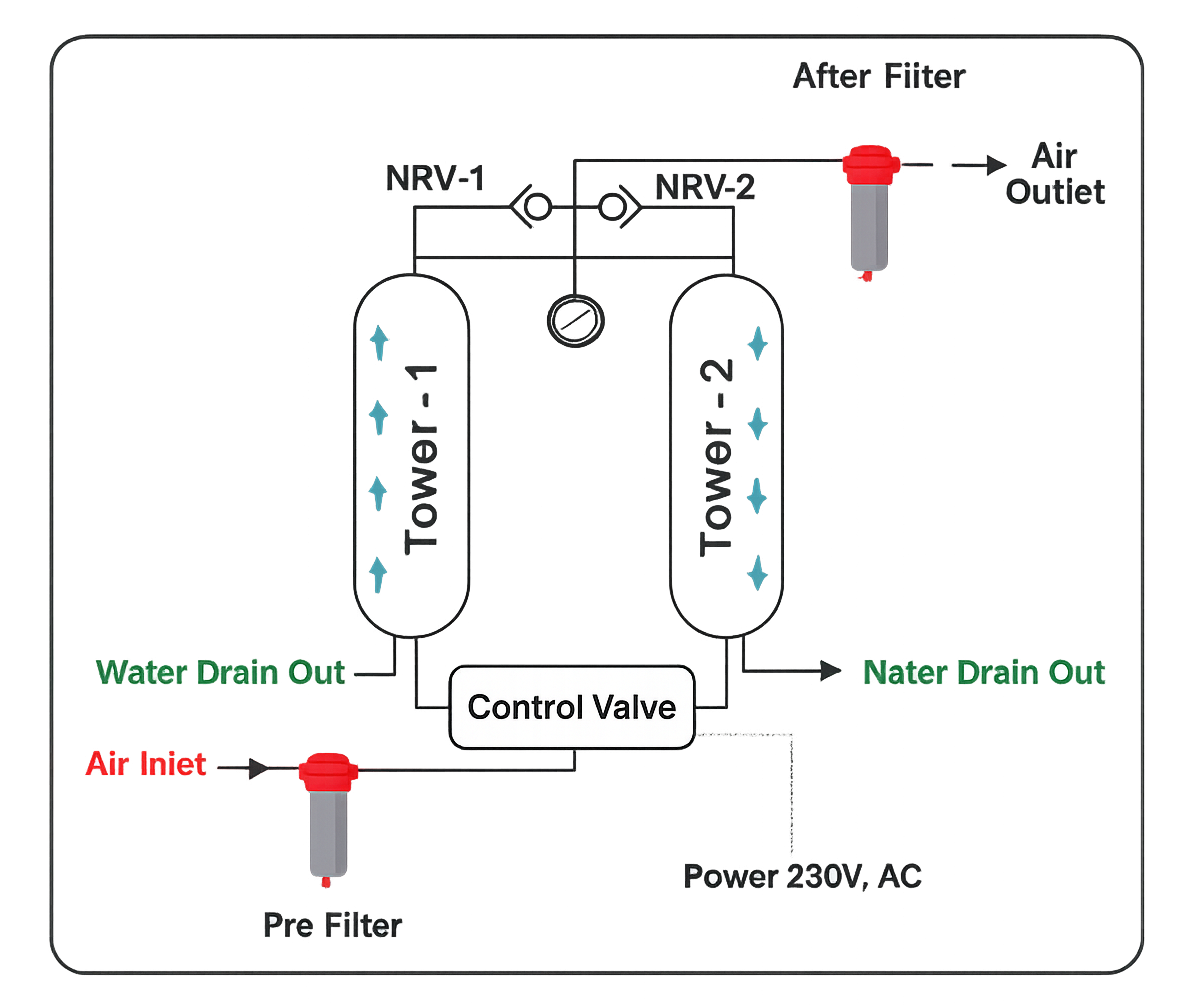

- Uses “heatless” method of regeneration, meaning a portion of dried compressed air is used to purge moisture from the desiccant tower without needing an external heater.

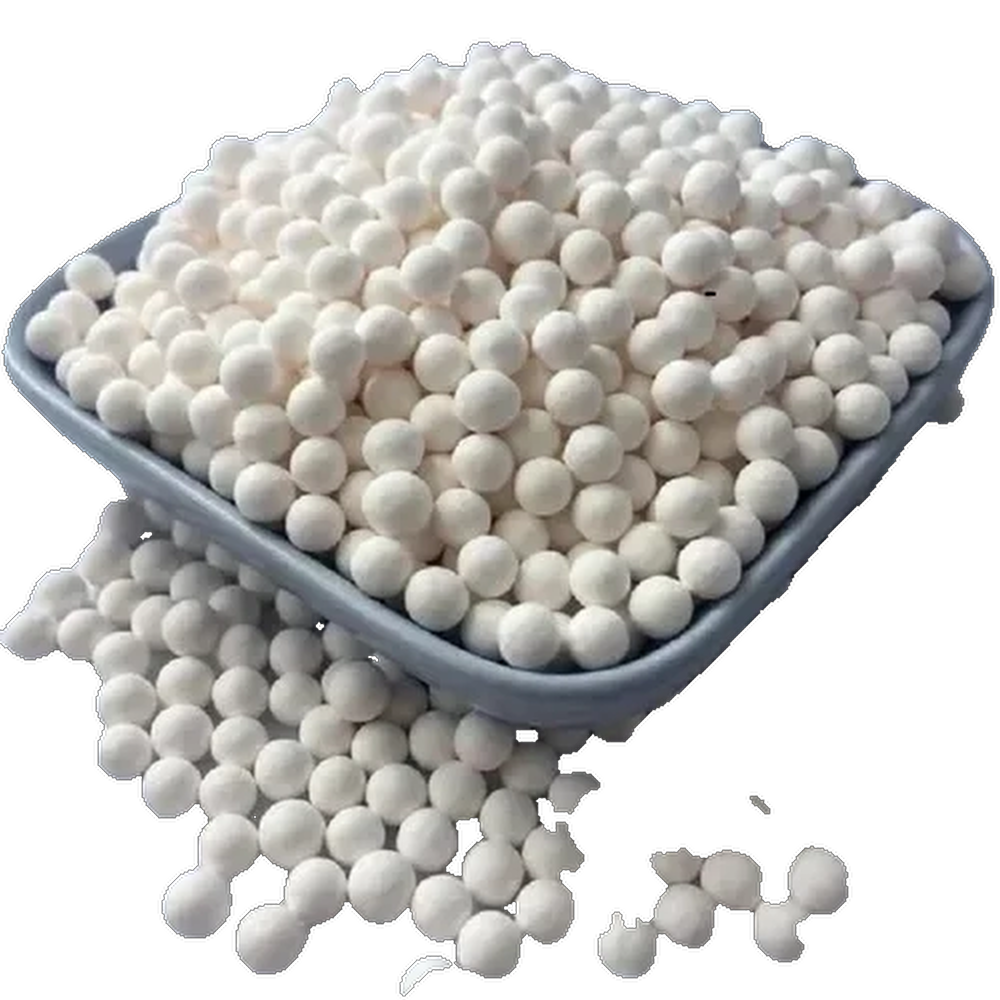

- The desiccant bed consists of activated alumina balls, providing low dew point (≈ -40°C) drying performance.
- The design includes a coalescing prefilter and after‐filters (to remove oil, particulates, desiccant fines), ensuring that the desiccant bed and downstream air remain clean.
- Incorporates pneumatic valves, NRV (non-return valves), purge control, and outlet pressure indicator. These features help regulate cycles and monitor operation.
- Tool rooms / small workshops using pneumatic tools where moisture in air could damage tools or affect finish.
- CNC / VMC (vertical machining centre) machine shops needing dry air for precision & preventing corrosion.
- Pharmaceutical / food & packaging industries where moisture‐free / low‐contaminant air is critical for hygienic processing.
- Paint booths or powder coating work at smaller scale, to avoid defects caused by water / damp air.
| Specification | Value |
|---|---|
| Air Flow Capacity | 10 CFM |
| Working Pressure Range | 4 to 12 bar |
| Working / Inlet Temperature Range | 5°C to 45°C |
| Atmospheric (Pressure) Dew Point | -40°C |
| Supply Power / Voltage | 230 V / Single-phase 50 Hz |
- Meets ISO 8573-1 air quality standards (Table 3, Class 2 or Class 3 moisture/particulate separation): ISO Standard
- roduct includes digital / analog indicators (temperature, pressure), and uses durable materials (e.g: Automation
- High-Quality Desiccant Material: Equipped with premium activated alumina balls for efficient moisture adsorption and extended service life.
- Robust Construction: Built with 5mm thick MS pipes, laser-cut for precision, and finished with anti-corrosive powder coating.
- Integrated Prefilter: Comes with a heavy-duty prefilter to remove particulates before air enters the desiccant bed.
- User-Friendly Monitoring: Includes a digital temperature indicator and pressure gauge for easy monitoring of system performance.
- Compact Design: Lightweight and wall-mountable, making it ideal for space-constrained environments.
- CNC/VMC Machine Workshops: Ensures dry air for precision machinery, preventing rust and corrosion.
- Hospitals: Provides clean, dry air for medical equipment and pneumatic systems.
- Food & Packaging Industry: Maintains air quality standards to prevent contamination in food processing and packaging.
- Paint Booths/Powder Coating: Delivers moisture-free air to achieve high-quality finishes and prevent defects.
| Specification | Value |
|---|---|
| Air Flow Rate | 5 CFM |
| Maximum Operating Pressure | 15 bar |
| Power Supply / Voltage | Single-Phase 230V / 50 Hz |
| Maximum Inlet Temperature | ~45°C |
| Automation | Automatic operation with a logical microcontroller and energy-saving algorithms |
- Country of Origin: Made in India
- Warranty: 1 year
×
❮
